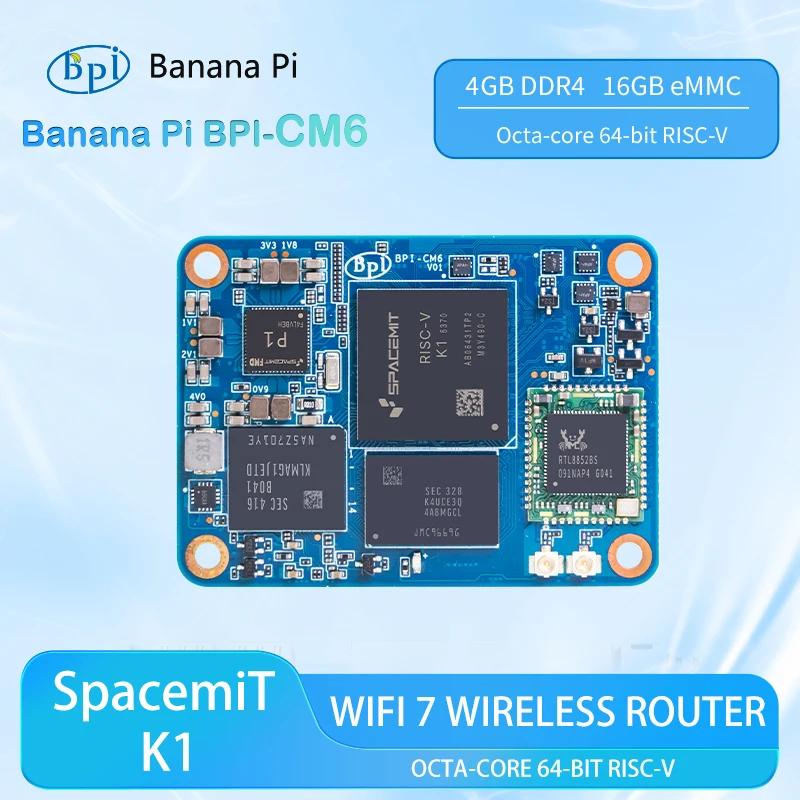

Banana Pi BPI-CM6 SpacemiT K1Octa-core 64-bit RISC-V AI 4GB LPDDR4 16GB eMMC Integrates RTL8211F PHY Industrial control Board

Price:
US $87.89 / piece
Bundle:
  • CM6 SET
Seller Guarantees:
Ships within 7 business days
Buyer protection 75 days
Commit Delivery 60 days
View snapshot of order in English| View snapshot of order in Japanese
This is a snapshot of the product taken when the order was placed.

View current product

Item specifics
Brand Name:
bpi
Demo Board Type:
RISC-V
High-concerned chemical:
None
Battery Included:
No
Origin:
Mainland China
ROM Capacity:
4GB
Model Number:
BPI-CM6
Product Description

Banana Pi BPI-CM6 SpacemiT K1Octa-core 64-bit RISC-V AI 4GB LPDDR4 16GB eMMC Integrates RTL8211F PHY Industrial control Board



Key Features

  • SpacemiT K1(Octa-core 64-bit RISC-V AI CPU,integrates 2.0 TOPs AI computing power)

  • 4GB LPDDR4(SOC Support up to 16GB)

  • 16GB eMMC

  • 1x SDIO WiFi/BT Module

  • 1x Integrates RTL8211F PHY

  • 5-lane PCIE2.1 expansion capability interfaces

  • 1x USB 3.0 + 2x USB 2.0 interfaces

  • 1x HDMI 1.4 interface

  • 1x MIPI DSI interface

  • 3x MIPI CSI interfaces

  • 1x RGMII interface

  • 10x UART serial interfaces

  • Dimension: 40x55MM

  • Operating temperature range: -40°C to 85°C

Application direction

  • NAS

  • Laptop

  • Intelligent robotics

  • Industrial control

  • AI edge computing

  • Automation

Hardware

Hardware Interface

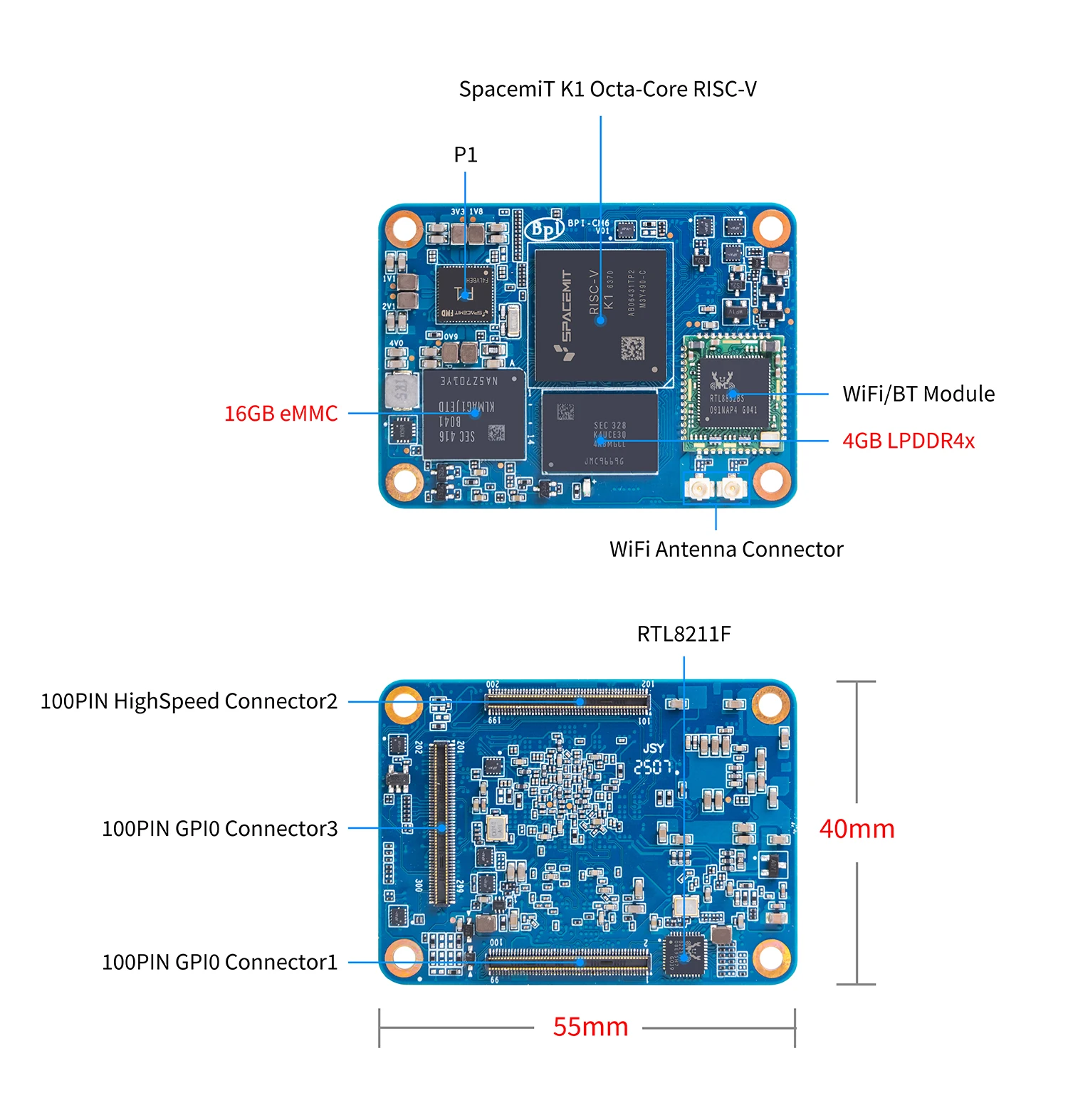

Hardware Spec

HardWare Specification of Banana Pi BPI-CM6 RISC-V Core board

CPU

SpacemiT K1 Otca-core X60(RV64GCVB),RVA22,RVV1.0

AI

2.0Tops from RlSC-V Core

GPU

IMG BXE-2-32@819MHz,32KB SLCOpenGL ES1.1/3.2EGL1.50penCL 3.0Vulkan 1.3

Memory

8/16 GB LPDDR4 (default is 8GB)

Storage

8/16/32/128 GB eMMC flash.(default is 16GB)

WiFi/BT

support Wifi/Bt module onboard

BPI-CM6 Block Diagram

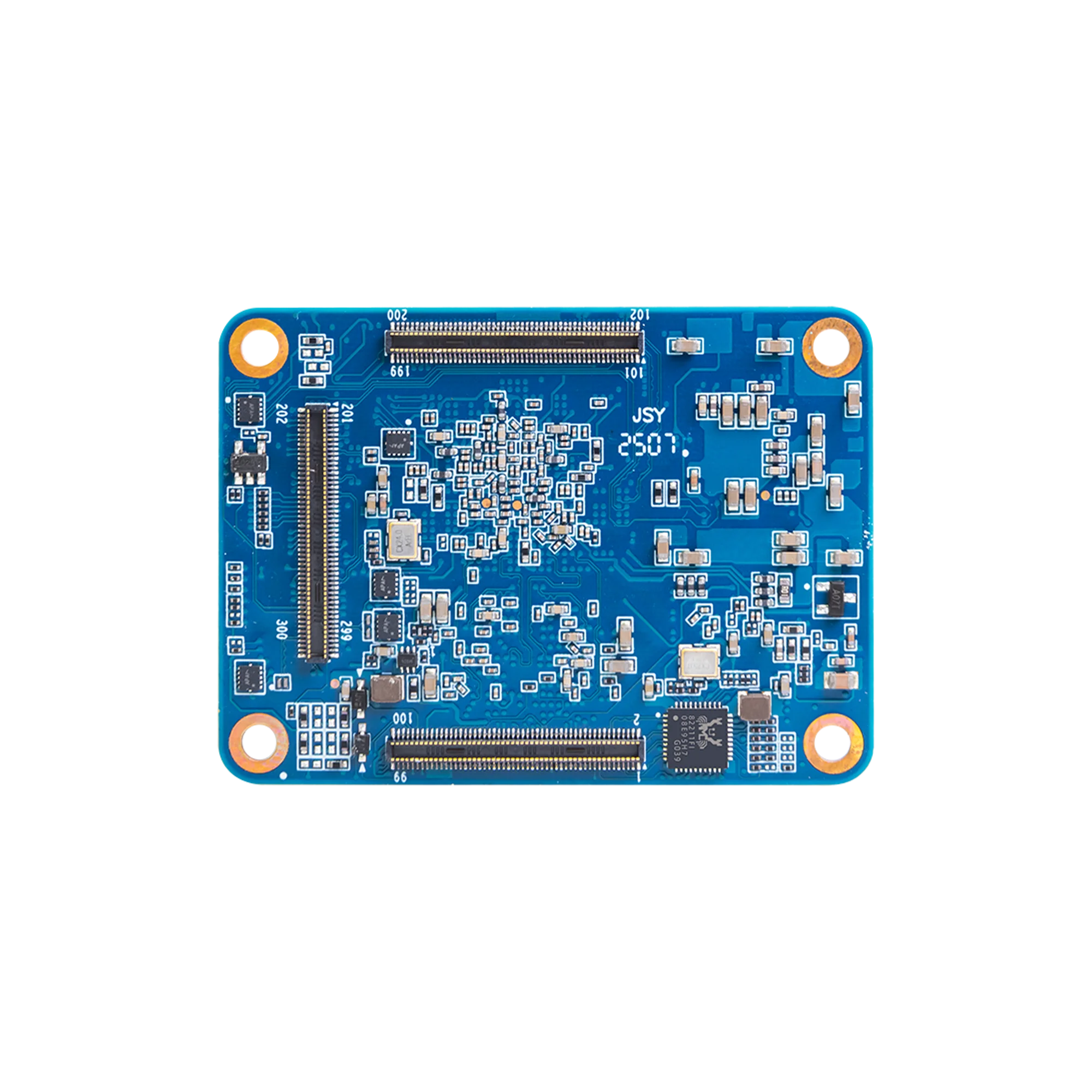

BPI-CM6 core board pin definitions

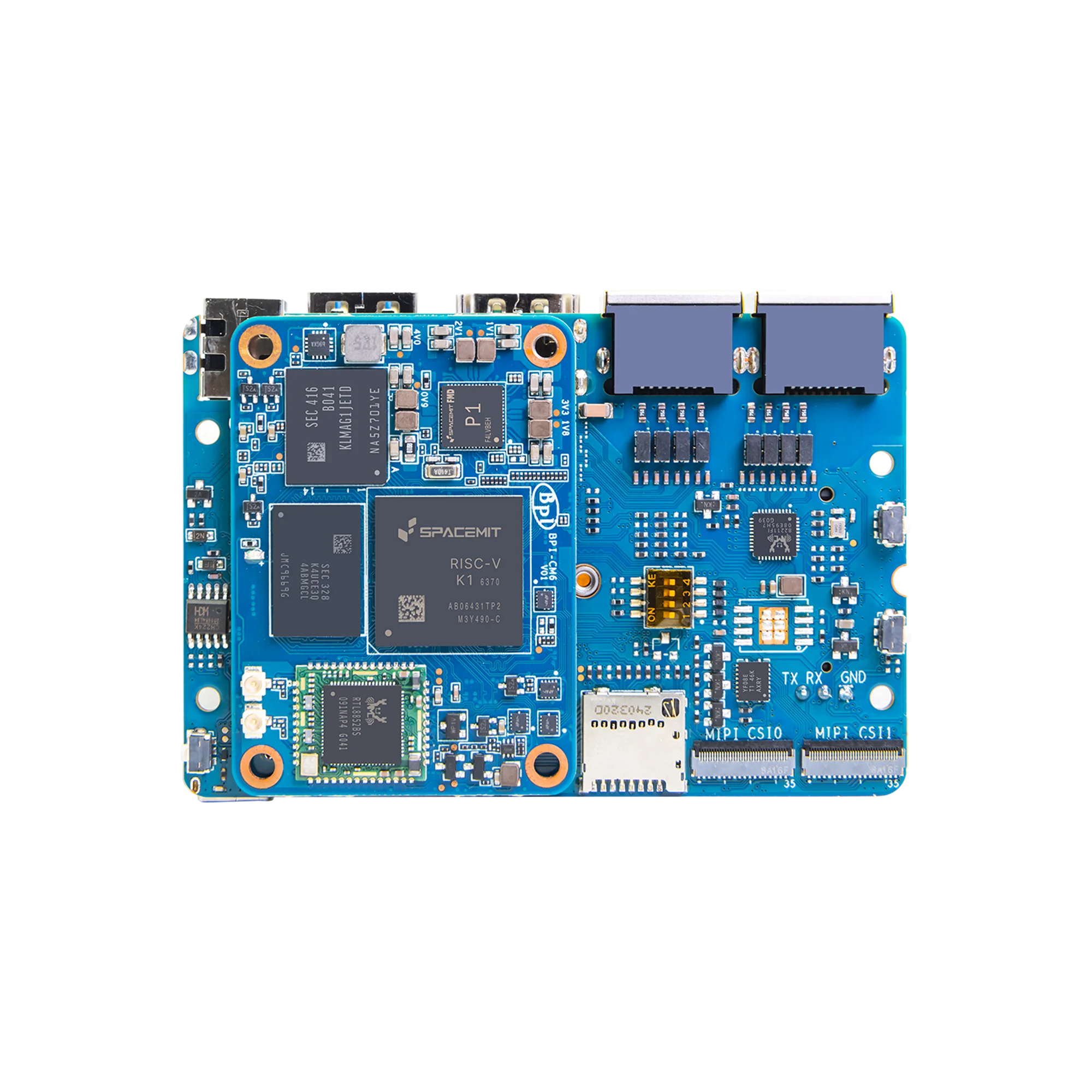

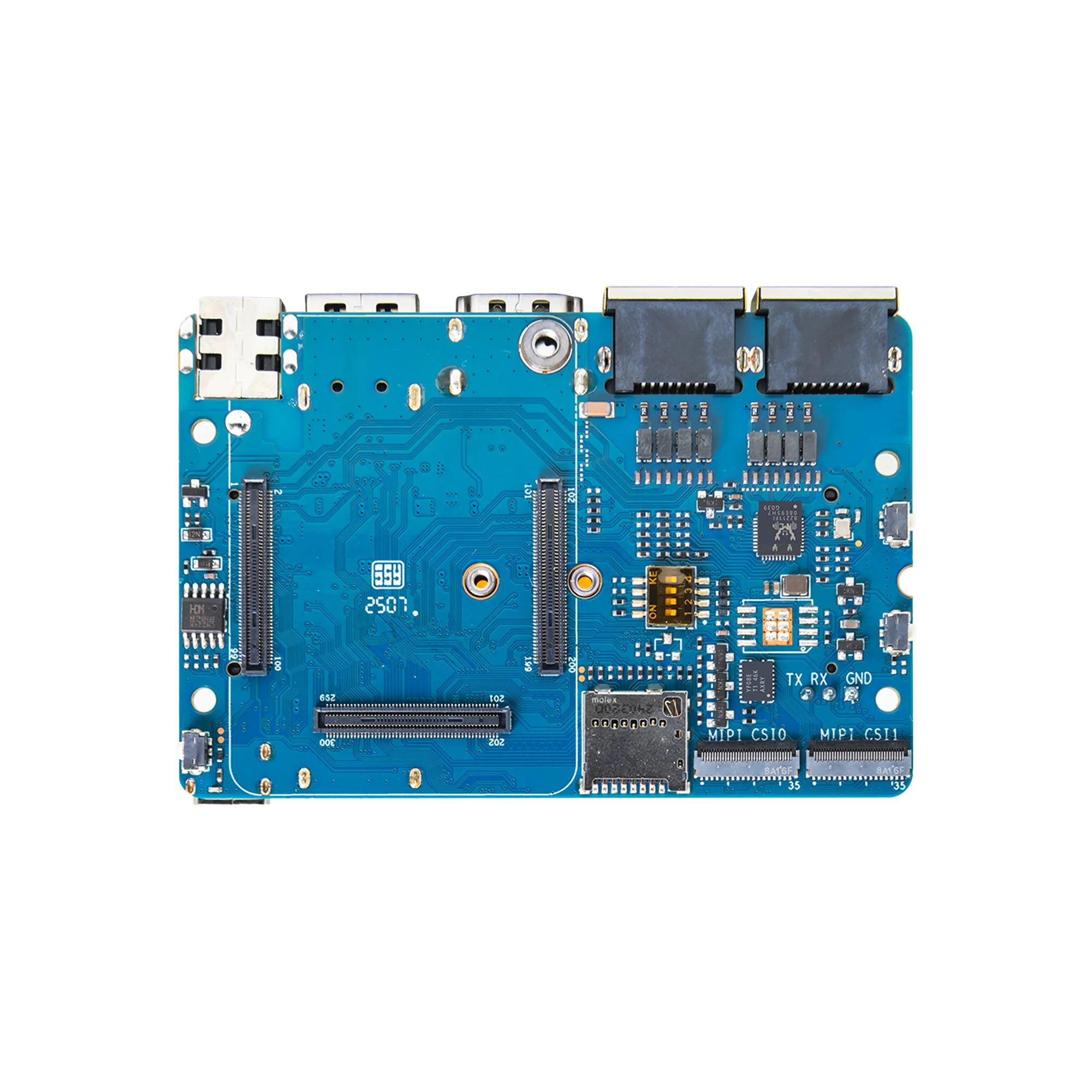

BPI-CM6 IO board

IO board Hardware Specifications

  • 1x HDMI TypeA Slot

  • 1x USB3.0 TypeA Slot

  • 1x USB2.0 TypeA Slot

  • 1x USB TypeC OTG

  • 2x Gigabit Ethernet RJ45

  • 1x MicroSD Slot

  • 2x M.2 M-KEY Slots with 2-lane PCIe Interface

  • 2x MIPI CSI 4-lane interfaces

  • 1x MIPI DSI 4-lane interface

  • 26PIN GPIO Header

  • 1x 12V DCIN Slot(5521)

  • Dimension: 56x85MM



Packaging Details
Unit Type:
piece
Package Weight:
0.3kg
Package Size:
11cm x 11cm x 11cm
