Pfsense Qotom Mini Pc 4 Gigabit Micro pc Core i7 i5 Fanless Mini PC Computer AES-NI pfsense Firewall router Thin Client Q355G4

Price:
US $382.99 / piece
Color:
  • 8G RAM 128G SSD
Bundle:
  • i7 WIFI
Seller Guarantees:
Ships within 3 business days
Buyer protection 23 days
This is a snapshot of the product taken when the order was placed.

View current product

Item specifics
Type:
Mini PC
Hard Drive Capacity:
120GB
Memory Capacity:
≥ 4GB
Use:
Commercial
Processor Model:
Intel Core i7-4500U/i5-5250U
Brand Name:
qotom
Processor Brand:
Intel
Graphics Card Type:
Integrated Card
Processor Main Frequency:
1.8GHz, up to 3GHz
Model Number:
Q370G4
Type:
Mini Desktop
Structure:
x86
Memory :
DDR3L 1333/1600 1.35v
Processor Graphics:
Intel HD Graphics 4400/6000
AES-NI:
YES
Watchdog:
YES
Power Consumption:
TDP 15w
Ports:
4 LAN+4 USB+COM+HD Video
WIFI:
Atheros AR9287
Application:
LAN/WAN Router firewall,proxy,wifi access point,VPN appliance etc.
Graphics :
Intel HD Graphics 4400/6000
Product Description

Pfsense Hardware Qotom Barebone Mini PC Nano itx Core i7 4500U Fanless Mini Computer X86 Router Ubuntu Mini Desktop Thin Client


Shipping Advices :

PS: Remote address will charge for remote cost,Hope you know.


ups ( no import tax )

 European Union countries like Poland, Hungary, Belgium, Luxembourg, Denmark, the Netherlands, Austria, Finland, Ireland, Portugal, Sweden, the Czech republic, Estonia, Lithuania, Latvia, Romania, Greece, Bulgaria, Slovenia, Slovakia, Croatia, Spain, Italy, France, Germany and United Kingdom.

1. No customs hassle,No additional import tax for this shipping.

2. Generally,it arrives  5-17 days later. This shipment update shipping information about 7 days later after shipment.Pls waite patiently.7 days later,It will arrives at transit location Netherlands,then you can receive pc about 3 laters later.


DHL
1.Generally, It will arrives at destination about 3-5 workdays.

2. To avoid heavy tax,we declare low value 63 USD on invoice.
For Germany and United Kingdom ,we arrange NO TAX DHL by default.(or else for this two countries,we have to declare true value,hope you know.)Generally,you can receive it about 7-20 days. This shipment update shipping information about 7 days later after shipment.Pls waite patiently.

EMS
For countries like Russia Federation, Brazil, Ukraine, Belarus,Mongolia etc.
Generally,it arrives about 10-20 days later.

Product Description
Dimension
187*115*52mm(L*H*W)
OS
pre-install pfsense,optioanl Ubuntu/Linux/Win8/10.etc
Processor
i7:  Intel Core i7-4500U Processor 4M Cache, up to 3.00 GHz
i5:  Intel Core i5-5250U Processor 2.2GHz,up to 2.7 GHz
Memory(RAM)
support SO-DIMMs Support DDR3L 1333/1600 MHz,1.35V

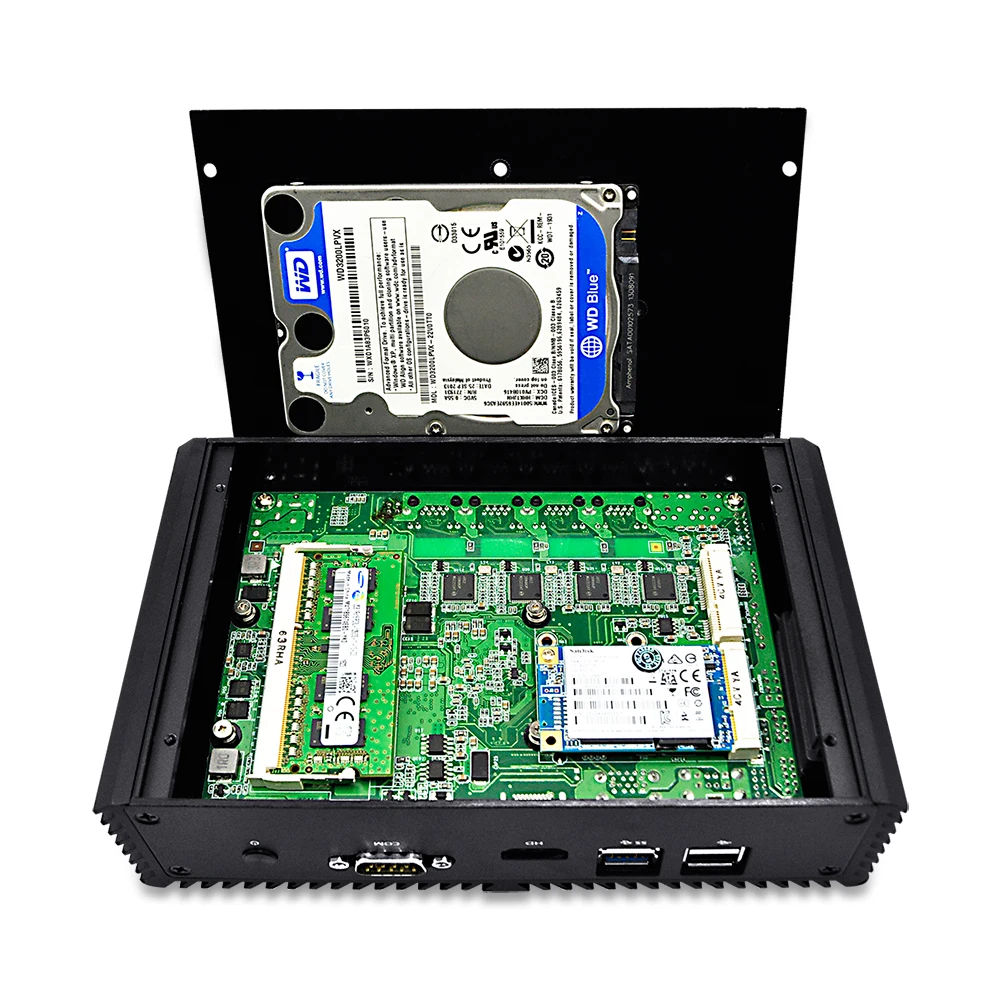

Hard Disk(Msata SSD)
support SSD ( MSATA / SATA) - support 2.5" HDD
Onboard VGA
i7: Intel HD Graphics 4400
i5: Intel HD Graphics 6000
Onboard LAN
4*rj45 Intel I211-AT- 10/100/1000 Controller

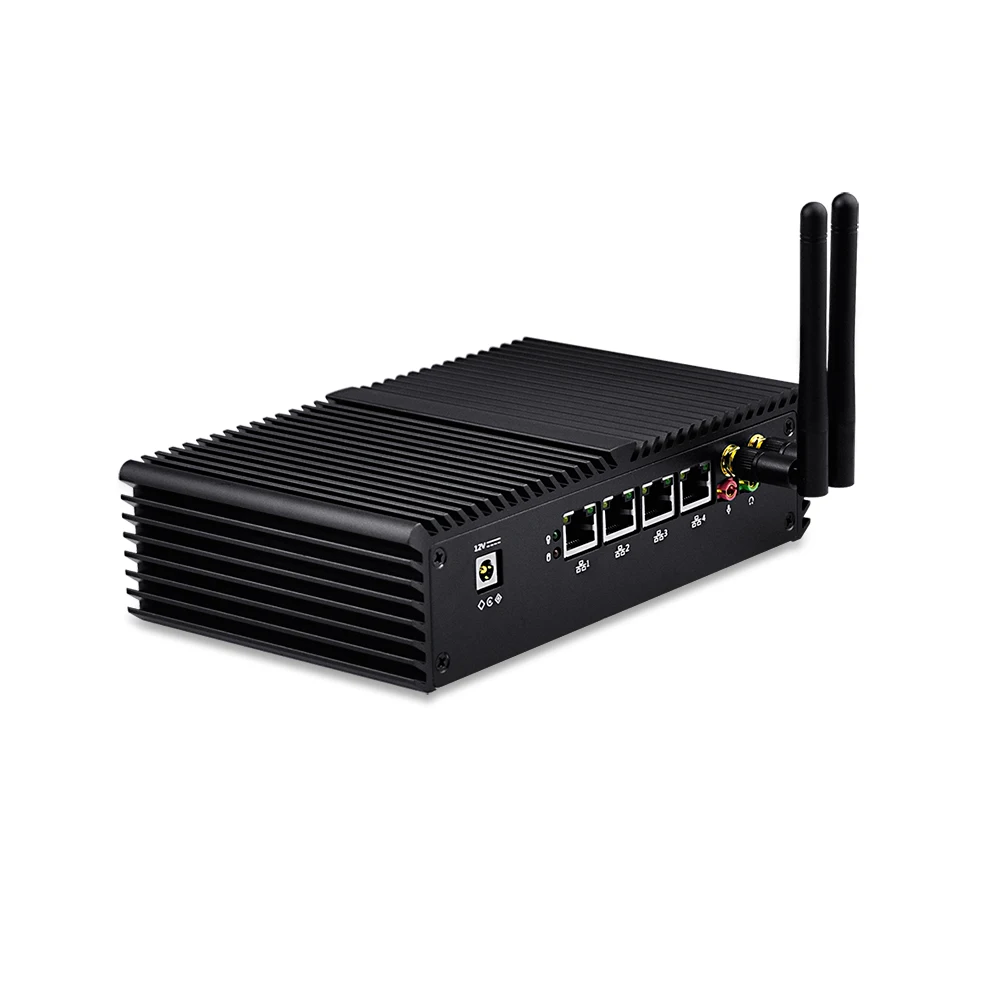

WiFi / Bluetooth
Atheros AR9287
Audio Solution
Realtek ALC662 6-Channel HD Audio

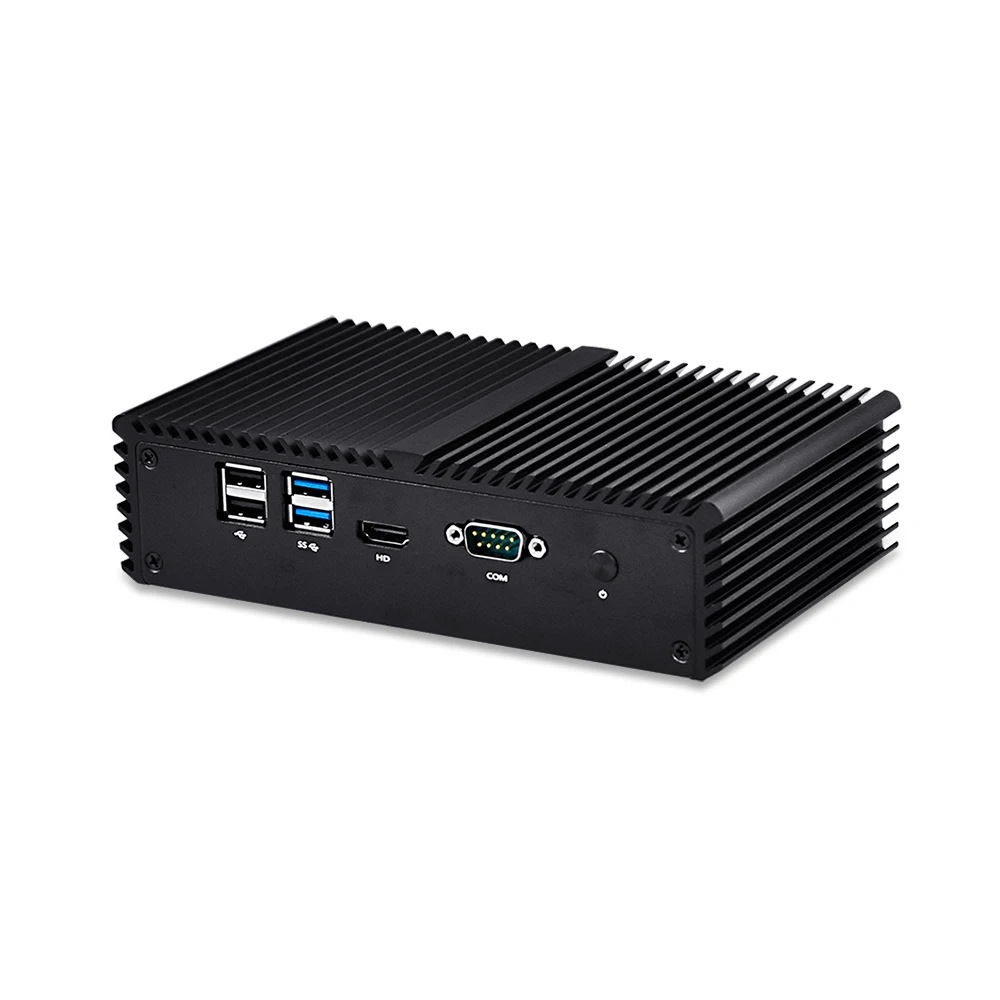

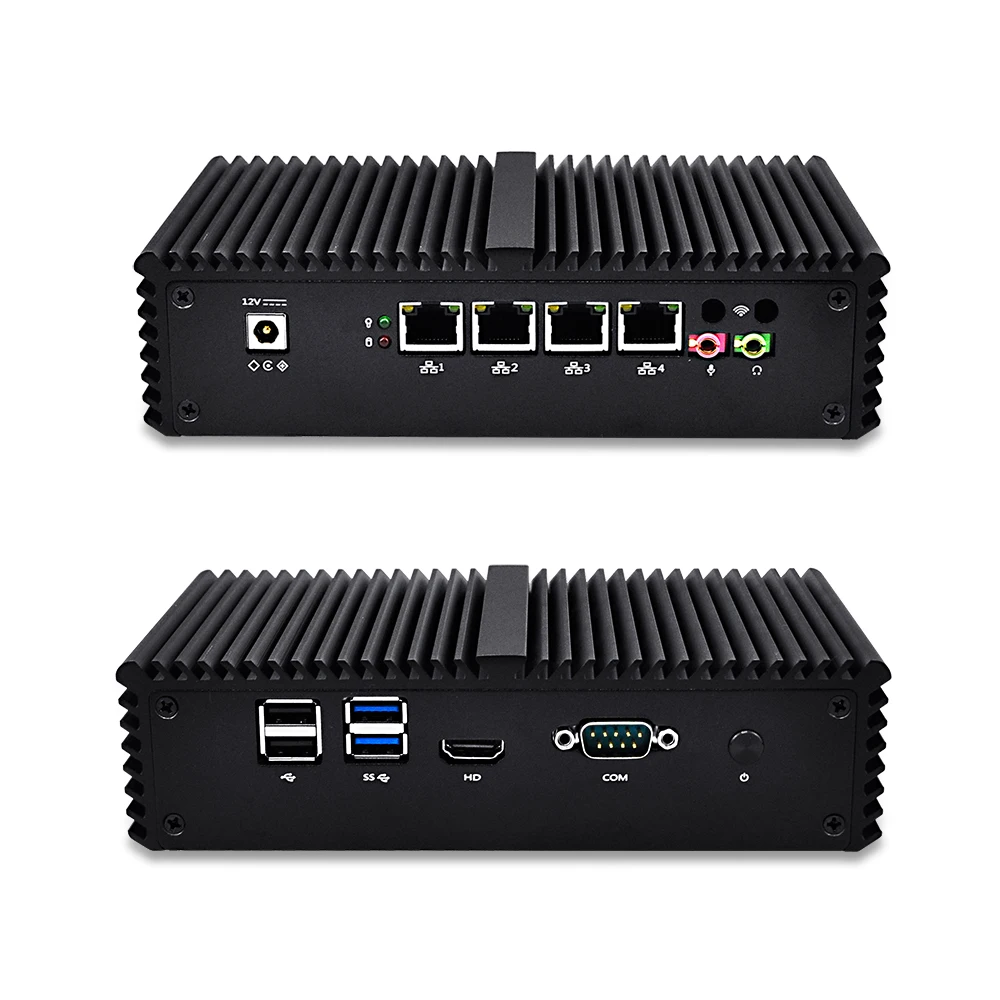

Front-Panel Connectors
 power on/off button
 HDD LED, Power LEDs
 2 *USB 2.0 Ports
 2 * USB 3.0 ports
 COM port
 HD Video port

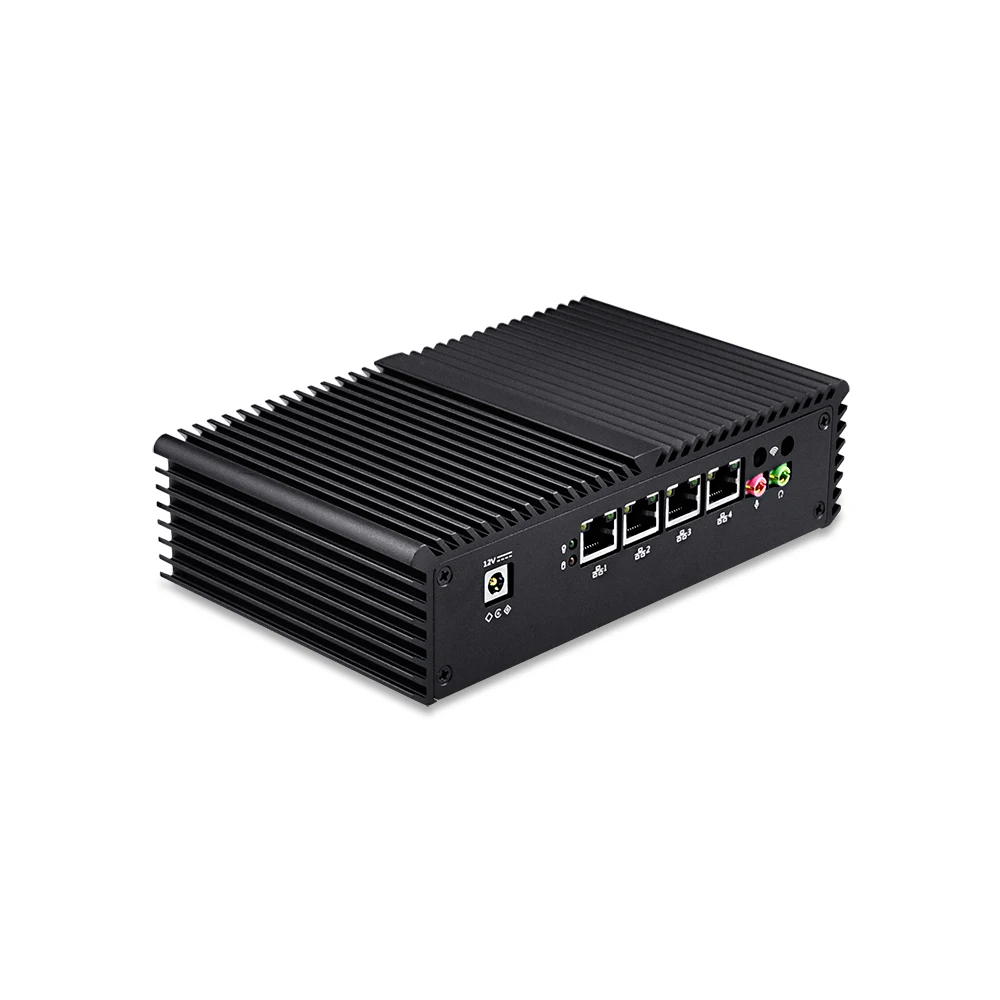

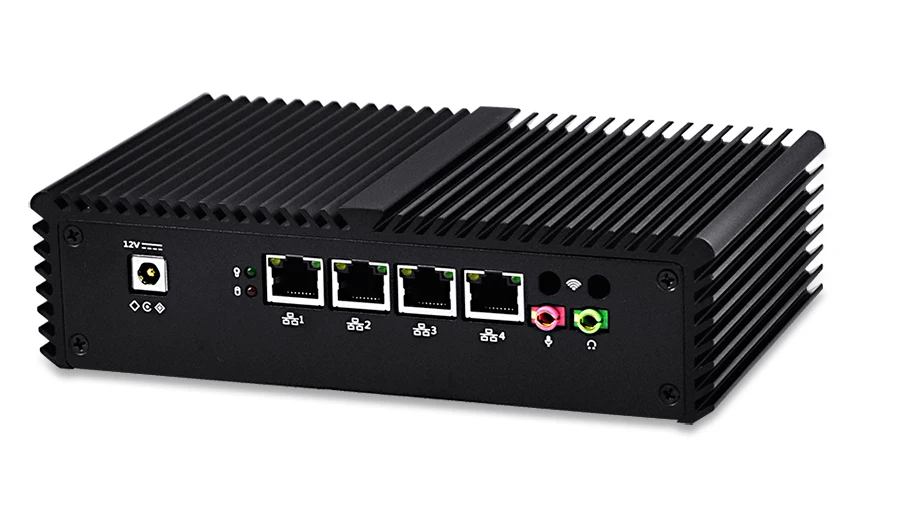

Rear-Panel Connectors
 12V DC input
 4 * Intel RJ-45 Ports
 1 x Speak Out Connector
Q310G4-_03
78

03
21
2

10



11




                                                       Pls Attention :


Pfsense:
We pre-install pfsense (PS: Username: admin  Password: pfsense)you also can install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter into BIOS.
We can provide Windows drivers download link and motherboard user manual download link.


LAN Ports:
 The 4 ports are labeled WAN, LAN, OPT1 and OPT2. when you are using pfsense, Actually the ports should be 1, 3, 4, 2. If you need only WAN and LAN, pls the first port for WAN and the last port for LAN.


RAM:
please choose DDR3L-1333/1600 GHz 1.35V Non-ECC SO-DIMM RAM.

3G/4G module:

There is a mini PCI-e slot for wifi or 3G/4G module but it supports wifi by default, wanna install 3G/ 4G module, please leave a message.We will make some settings in advance. By the way, we don't supply SIM card and 3G/4G module.


13



BIOS Settings  :

Pls press " Delete" into BIOS.

bios

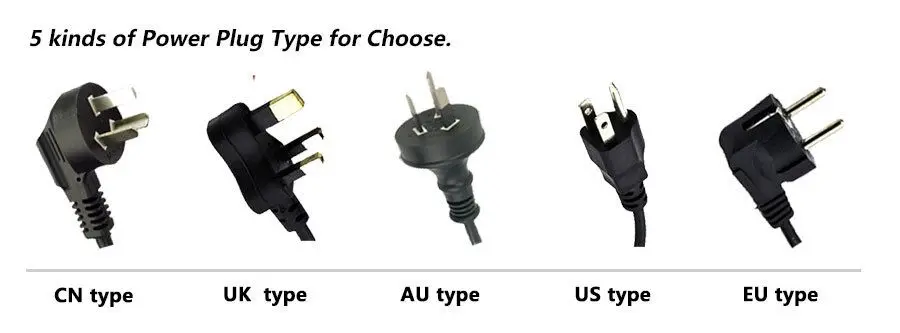

Package : power supply, SATA cable and VESA, 2 antennas ( if include Wi-Fi)



HTB1Xd1GPXXXXXaWaFXXq6xXFXXXX
81

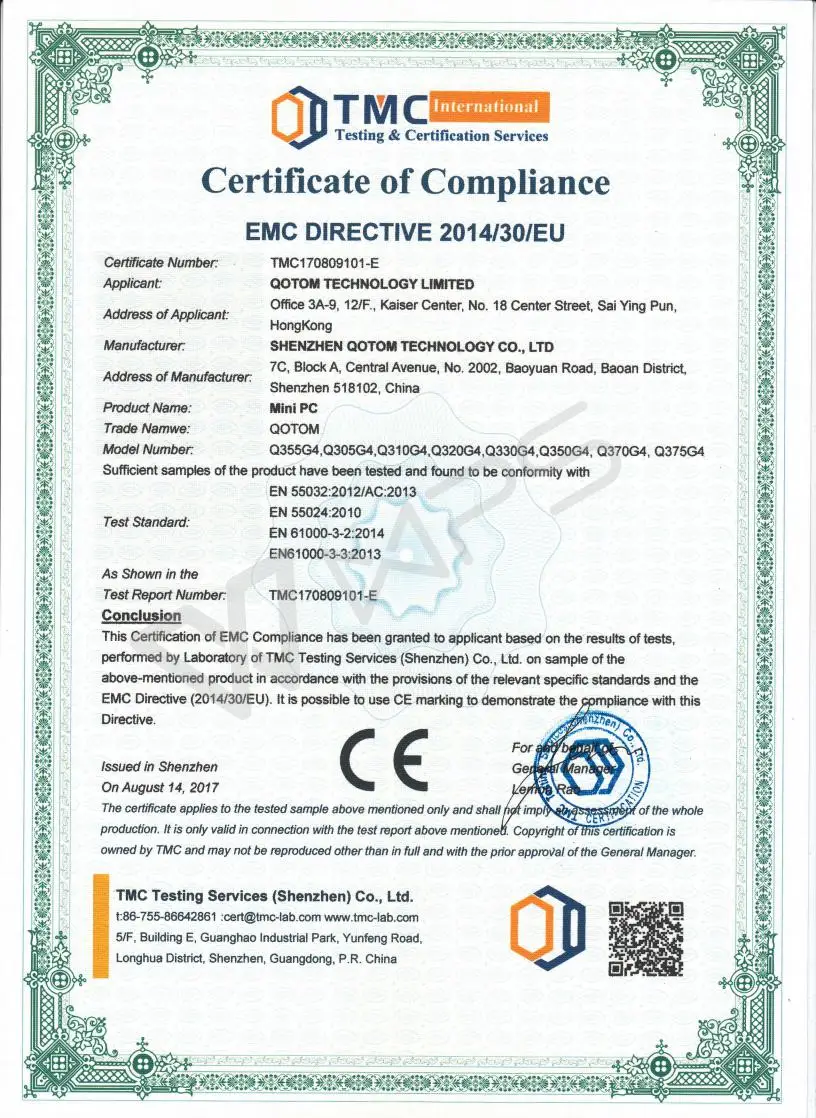

CE Certificate




MINI PC Q355G4 _01



Q310G4-_04



QQ20170407110524

QQ20170407110557


23



We support Paypal,T/T,Western Union payment also.Give us the detail shipping information( including Contact name,address,zip and phone and mail address.)Then We can send you the Proforma Invoice for payment.

1.If your credit card do not support Aliexpress payment
2.If you have some special requirements of our pc,Paypal and T/T is a good choice.
3.Bulk order,we can give you better discount.




FAQ:

Q1: About the system.

A1: It will come with pfsense.we can provide inactive Windows, Linux, VyOS, Linux iptables,Ubuntu ect. Would like other OS, give me an attached message. You also can install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter into BIOS.

Q2. I intend to use Windows 7 embedded but you install Windows 7?
   Can I install Windows embedded from USB drive?
A2:  we can not preinstall Windows 7 embedded. You can install it from USB drive. F11 boot from usb drive

Q3. Could you print our company logo on the product?
A3. Yes.Pls provide the us the logo file in PDF version.Pls leave me a message in advance.Then i will send you my email. We charge a little bit for printing the logo.

Q4. Could you produce customized package box for us?
A4. Yes, the MOQ. for that is 500pcs. Extra cost will be charged if quantity less than that.

Q5. How about the import tax?
A5. We are not responsible for your import fees (duty and tax, VAT and others), but we declare 63 USD to avoid heavy tax.
We are not responsible for the delays due to the Customs clearance in your country.pls fix it asap when it arrives at your country,or else pc will be returned to us.

Q6. Does it support 3G/4G?
A6. Yes, there is a mini PCI-e slot for wifi or 3G/4G module but it supports wifi by default, if you want to install a 3G/ 4G module, please leave a message. By the way, we don't supply any SIM card and 3G/4G module.

Q7. How about warranty?And who pay the freight,when pc back to qotom?

A7: One year warranty for non-human issues. We will test it after we receive the fault product. Generally,you pay for the shipping cost when the pc return to us. We will ship the replacement to you asap once we receive the fault product.

Q8: Questions about the LAN ports.

A8: We are still improve it. The lan port do not arrange in the correct order.













Packaging Details
Unit Type:
piece
Package Weight:
2.0kg
Package Size:
70cm x 260cm x 230cm
