What is a 2 inch flow meter and when should I use it?
If you're working with pipelines that carry water, fuel, or other liquids, and the pipe diameter is 2 inches, then a 2 inch flow meter is the right choice for you. It is designed to measure the flow rate of liquids or gases in a 2-inch diameter pipe, making it ideal for both industrial and residential applications.
- 2 inch flow meter
- A device used to measure the volume or mass of fluid passing through a 2-inch diameter pipe per unit of time.
- Flow rate
- The volume of fluid that passes through a given cross-sectional area per unit of time, typically measured in liters per minute (LPM) or gallons per minute (GPM).
To determine if you need a 2 inch flow meter, follow these steps:
- Measure the diameter of your pipeline. If it is 2 inches, then a 2 inch flow meter is suitable.
- Identify the type of fluid you are measuring (e.g., water, diesel, oil) to choose the appropriate meter type (e.g., ultrasonic, turbine, or electromagnetic).
- Check the flow rate requirements of your system to ensure the meter can handle the expected volume.
In my experience, I used a 2 inch flow meter in a small agricultural irrigation system. The system required precise water distribution, and the 2 inch meter provided accurate readings that helped optimize water usage.
How do I choose the best 2 inch flow meter for my application?
The best 2 inch flow meter for your application depends on the type of fluid, the environment, and the required accuracy. The answer is: choose a 2 inch flow meter based on the fluid type, installation conditions, and measurement accuracy needed. Here’s how to make the right choice:
- Determine the fluid type: For water, a magnetic or ultrasonic meter is often sufficient. For diesel or oil, a turbine or positive displacement meter may be more suitable.
- Assess the installation environment: If the meter will be installed outdoors or in a corrosive environment, look for a meter with a protective housing and appropriate material (e.g., stainless steel or PVC).
- Check the required accuracy: For high-precision applications like fuel dispensing, choose a meter with a high accuracy rating (e.g., ±1% or better).
For example, I needed a 2 inch flow meter for a diesel fuel tank at a small workshop. I chose a
2 inch diesel flow meter with a stainless steel body and digital display. It provided accurate readings and was easy to install. Below is a comparison of common 2 inch flow meter types:
| Type | Best For | Accuracy | Installation |
| Ultrasonic | Water, clean liquids | ±1.5% | Non-invasive, clamp-on |

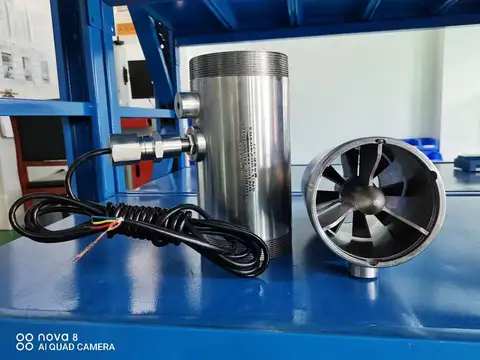

| Turbine | Diesel, oil, clean fluids | ±1% | Inline installation |
| Electromagnetic | Conductive liquids | ±0.5% | Inline, requires conductivity |
What are the common issues with 2 inch flow meters and how can I troubleshoot them?
Common issues with 2 inch flow meters include inaccurate readings, sensor failure, and clogging. The answer is: regular maintenance and proper installation can prevent most issues. Here are the most common problems and how to fix them:
- Inaccurate readings
- Caused by improper installation, air bubbles, or sensor misalignment.
- Sensor failure
- Can be due to corrosion, electrical issues, or physical damage.
- Clogging
- Occurs when debris or sediment builds up in the meter, especially in dirty or slurry applications.
To troubleshoot these issues:
- Check the installation: Ensure the meter is installed in a straight section of pipe with no turbulence or bends nearby.
- Inspect the sensor: Look for signs of corrosion or damage. Clean the sensor if necessary.
- Flush the system: If the meter is clogged, shut off the flow and flush the system with clean water or a suitable solvent.
In one case, I had a 2 inch flow meter that was giving erratic readings. After checking the installation, I found that the meter was installed too close to a valve, causing turbulence. I relocated the meter to a straight section of pipe, and the readings stabilized.
What do users say about 2 inch flow meters and related products?
Users generally rate 2 inch flow meters highly for their accuracy and ease of installation. The answer is: most users are satisfied with the performance of 2 inch flow meters, especially when used in the correct application. Here are some common user experiences: - Positive feedback: Users appreciate the accuracy of 2 inch flow meters, especially in water and fuel applications. Many mention that the meters are easy to install and provide reliable readings. - Negative feedback: Some users report issues with clogging in dirty environments or inaccurate readings due to improper installation. - Related products: Users also search for related sizes such as
1 inch flow meter,
1.5 inch flow meter, and
3 inch flow meter. These are often used in similar applications but for different pipe sizes. The
2 inch diesel flow meter is also a popular variant for fuel measurement. If you're looking for a flow meter for a different pipe size, you may also consider the
1 inch flow meter for smaller systems or the
3 inch flow meter for larger industrial applications. The yzyx flow meter is another brand that users frequently mention for its durability and performance. In conclusion, the 2 inch flow meter is a versatile and reliable tool for measuring fluid flow in a wide range of applications. Whether you're working with water, diesel, or other liquids, choosing the right 2 inch flow meter can help you achieve accurate and consistent results.
