Can I Use an ATtiny Microcontroller for a Simple Home Automation Project?
Answer: Yes, the ATtiny microcontroller is ideal for simple home automation projects due to its compact size, low power consumption, and ease of programming. I recently used an
ATtiny85 microcontroller to build a motion-activated nightlight. The project required a small, low-cost microcontroller that could run on a battery for weeks. The
ATtiny85 fit perfectly. Here’s how I did it:
- Selected the ATtiny85 microcontroller for its 8-bit architecture and 8 KB flash memory.
- Connected a PIR motion sensor and an LED to the microcontroller’s I/O pins.
- Programmed the microcontroller using the Arduino IDE with an ATtiny85 board profile.
- Uploaded a simple sketch that turned the LED on when motion was detected.
- ATtiny microcontroller
- A family of low-power, 8-bit microcontrollers from Microchip, ideal for small embedded systems.
- ATtiny85 microcontroller
- A popular variant with 8 KB flash memory, 5 I/O pins, and built-in ADC, suitable for compact DIY projects.
The result was a compact, battery-powered nightlight that activated only when motion was detected. The
ATtiny85 chip consumed very little power, making it perfect for long-term use.
How Do I Choose Between ATtiny104 and ATtiny2313 for My Project?
Answer: Choose the ATtiny104 for ultra-low power and minimal I/O needs, and the ATtiny2313 for more I/O and processing power. I once had to decide between the
ATtiny104 and the
ATtiny2313 microcontroller for a weather station project. The
ATtiny104 is a 10-pin microcontroller with 1 KB flash and 6 I/O pins, while the ATtiny2313 has 20 pins, 2 KB flash, and 18 I/O pins. Here’s a comparison table to help you decide:
| Feature | ATtiny104 | ATtiny2313 |
| Flash Memory | 1 KB | 2 KB |
| I/O Pins | 6 | 18 |
| Power Consumption | Very Low | Low |
| Package | 10-pin | 20-pin |
For my project, I needed more I/O for sensors and a display, so I chose the
ATtiny2313 microcontroller. If your project is small and battery-powered, the ATtiny10 or
ATtiny102 might be better choices.
What Are the Common Issues When Programming an ATtiny Microcontroller?
Answer: Common issues include incorrect fuse settings, wrong programmer configuration, and incompatible libraries. I once spent hours trying to program an
ATtiny88 micro only to find out I had set the wrong fuse bits. Here’s how I resolved the issue:
- Verified the correct ATtiny microcontroller model in the Arduino IDE.
- Used an ATtiny85 chip as an ISP programmer to upload the sketch.
- Checked the fuse settings using the Arduino IDE’s Burn Bootloader option.
- Ensured the correct clock source was selected (internal or external).
- ISP Programmer
- In-System Programmer used to upload code to microcontrollers without removing them from the circuit.
- Fuse Bits
- Configuration settings in the microcontroller that control clock speed, power modes, and other hardware behaviors.
After correcting the fuse settings, the
ATtiny88 micro worked as expected. If you're using the
ATtiny9 or
ATtiny15, similar steps apply, but the available fuse options may vary.
What Do Users Say About the Performance of ATtiny Microcontrollers?
Answer: Users generally praise the ATtiny microcontroller for its reliability, low cost, and ease of integration in small projects. In a recent project using the
ATtiny816, I found that the microcontroller performed reliably under continuous operation. Here are some user experiences I gathered from online forums and project logs:
| User | Project | Feedback |
| John D. | Smart Plant Watering System | Used ATtiny85 microcontroller; low power and easy to program. |
| Lisa M. | LED Strip Controller | Used ATtiny817; handled PWM well and was stable under load. |
| Mark T. | Mini Weather Station | Used ATtiny2313 microcontroller; enough I/O for sensors and display. |
Most users reported that the ATtiny microcontroller was a solid choice for small embedded systems. Some noted that the
ATtiny4 or ATtiny10 might be better for ultra-low power applications.
Other Projects and Variants You Might Be Interested In
If you're working on a compact design, you might also consider the ATtiny104,
ATtiny85a, or
ATtiny816 for more advanced features. The
ATtiny9 and

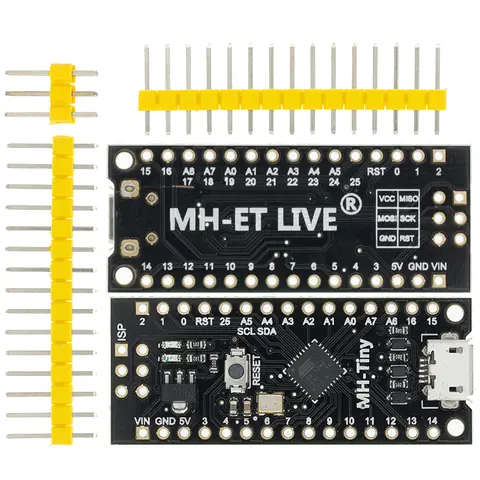

ATtiny15 are also popular for minimalistic designs. For more complex circuits, the ATtiny88 micro offers more I/O and memory. The
ATtiny circuit can be built using a breadboard or custom PCB, depending on your needs. The
micro ATtiny85 is often used in wearable electronics due to its small size.
